Ultra Large Cutting Area Laser Metal Plate Cutting Machine
Technical Parameter
Model
LP-12025S
Model
LP-12025S
Processing Range (L*W)
12000*2500mm
Laser Power
1000-12000W
Workbench Maximum Load
10000kg
X Y Axis Positioning Accuracy
±0.03mm/m
X Y Axis Repeat Positioning Accuracy
±0.02mm/m
Maximum G Speed(acceleration)
1.2G
Maximum Speed
120m/min
Dimensions
15500*3640*1850mm
ADVANTAGES OF ACME LASER CUTTING MACHINE
Autofocus Laser Cutting Head
It can change its laser spot to proper size and shape according to cutting materials and thickness. The software automatically adjusts the focusing lens to realize automatic drilling and cutting of different plates.
Customizable Cutting Area
Realize the overall processing of ultra large work pieces, up to 24m, and can be customized according to customer needs.
Quickly and accurately cut sheets to meet more cutting needs.
Cast Aluminum Welded Beams
Made of high quality materials, high density, no deformation. Good dynamic performance, smooth movement.
Light weight, corrosion resistance, oxidation resistance, high processing speed.
Segmented Modular Workbench
The working table adopts modular design, which can be dismantled and replaced without delaying production.
Wide range of processing materials can process both sheet metal and large-sized steel profile, saving time
Cypcut Cnc System
Micro-connection cutting
Active obstacle avoidance
Real-time monitoring of core components
Active reminder of machine maintenance

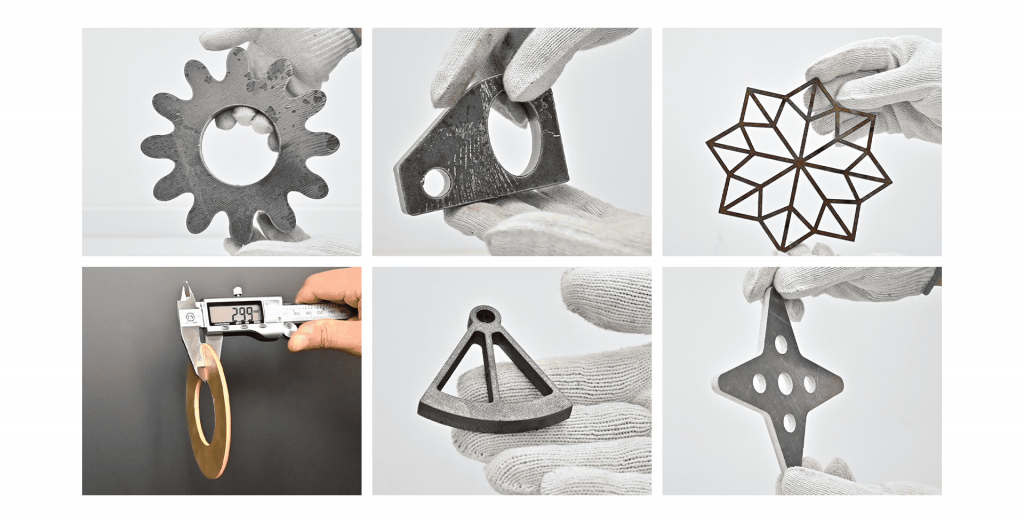

It can be used for 0.5-25mm carbon steel plate, 0.5-16mm stainless steel plate, galvanized sheet, cold-rolled sheet, electrolytic plate; 0.5-16mm aluminum alloy plate,
0.5-10mm brass and red copper and other metal materials.
high power laser cutting machine can carry 35000w laser power, so it is an ideal choice for cutting some thick plates.
For example, in the manufacturing of agricultural machinery, textile machinery, food processing machinery and engineering machinery,
ultra-high power laser cutting machine is usually used for processing.
