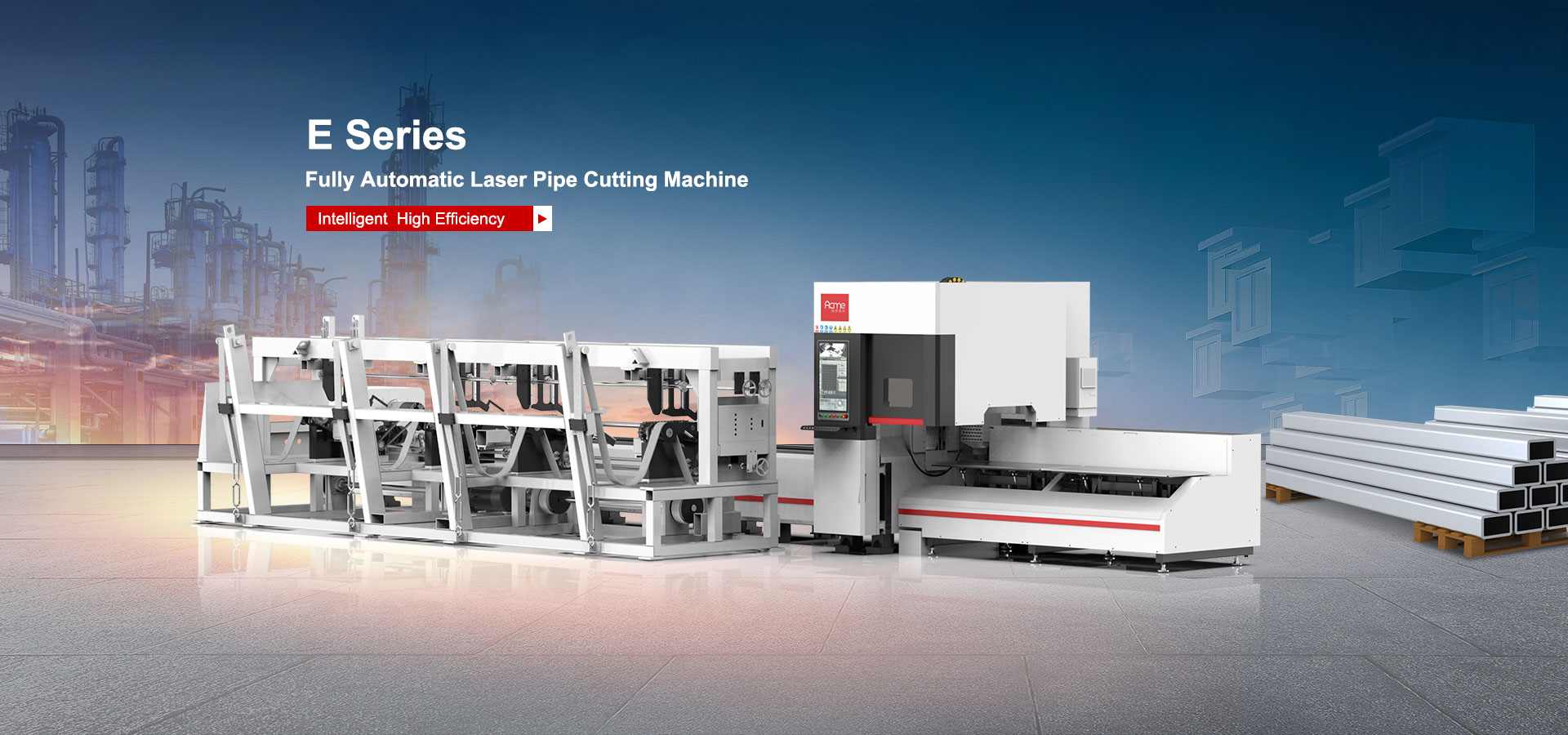

Automatic High Efficiency Laser Pipe Cutting Machine
Technical Parameter
Model
LT-6025EK
Model
LT-6025EK
Pipe Size
Φ16-240mm
Tube Cutting Length
6300mm
Laser Power
1000-6000W
Max. Tube Weight
1000kg
Total Weight
4.5t
Tailing Wast Length
≥65mm
X Y Axis Positioning Accuracy
±0.05mm/m
X Y Axis Repeat Positioning Accuracy
±0.05mm/m
Max. Acceleration
1.2G
Max. Rotation Speed
85r/min
Max. Travelling Speed
92m/min
Dimension
11527*2450*2425mm
The intelligent bevel cutting head can rotate 360° infinitely and swing ±45°, and can perform three-dimensional cutting
The Clamping Force of The Eight-Cylinder Structur Is Twice That Of The Ordinary Chuck
Maximum Load-Bearing Capacity of Single Tube, Ultra-Long Tube Cutting

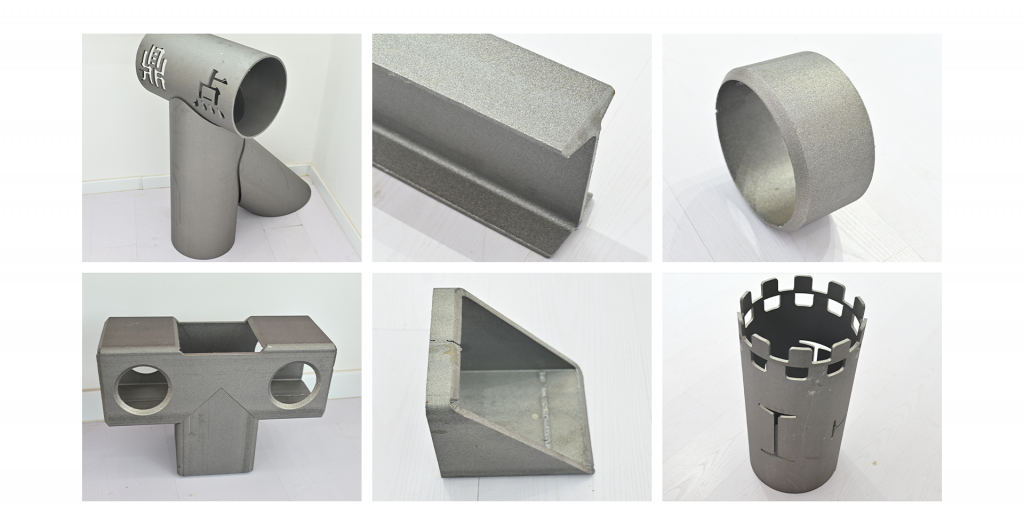

The maximum processing pipe weight is 1000kg, pipe length is 6300mm. Cutting angle steel, channel steel, I-beam and other profiles.
It can be used for 0.5-25mm carbon steel plate, 0.5-16mm stainless steel plate, galvanized sheet, cold-rolled sheet, electrolytic plate; 0.5-16mm aluminum alloy plate,
0.5-10mm brass and red copper and other metal materials.
high power laser cutting machine can carry 35000w laser power, so it is an ideal choice for cutting some thick plates.
For example, in the manufacturing of agricultural machinery, textile machinery, food processing machinery and engineering machinery,
ultra-high power laser cutting machine is usually used for processing.
